As governments decarbonize their economies through renewable energy generation, volatility in electricity prices will surge. Players can use multiple levers to mitigate it—but they must act carefully to avoid damaging industrial competitiveness and increasing costs.
This article is the second in a series exploring changes to our electricity and broader energy systems—and the implications for consumers and governments—that will arise from the massive shift to electrification and variable renewable energy needed to achieve our net-zero emission ambitions. In the first article, “Why Your Company Needs to Be an Electricity Trader,” we examined how this transformation of our electricity systems and markets will offer a competitive edge for companies that can be more flexible in the way they consume electricity. In this one, we explore the impact of renewables on price volatility in electricity markets, how this can be managed, and the implications of greater volatility for governments and electricity-intensive users.
The world is observing an extreme political and humanitarian crisis in consequence of Russia’s invasion of Ukraine. The war has had severe flow-on effects for regional and global energy markets and prices. These have, in turn, amplified the push for greater energy security and price stability. Yet in some electricity markets, we are also starting to observe periods when electricity is free or even negatively priced. Could electricity ever be free? That is one of the aspirations for the growth of renewable energy—large blocks of time when abundant solar and wind resources will generate zero marginal-cost electricity. Over the last year, we have been investigating the effect of high penetration of renewable energy on electricity markets: how it leads to volatility and, during the transition, how it increases the exposure of electricity markets to shocks in upstream gas markets as seen in Europe.
High penetration of variable renewable energy (VRE) generation (principally solar panels and wind turbines)—will drive price volatility in electricity markets. This is already apparent in front-runner markets like South Australia and California. Learning to live with volatility will be increasingly important as governments decarbonize their economies. But the relationship between variable renewables penetration and price volatility is not an obvious one and warrants further investigation.
To examine this important phenomenon, we looked at a decade of hourly electricity prices in 19 liberalized electricity markets. The impact of variable renewables on price volatility is visible across markets but it is nuanced, varying in degree from one market and region to the next. Some markets with moderate or high renewables penetration, including markets in Central and Western Europe and Scandinavia, have yet to experience the same degree of price volatility as others with similar levels of variable renewable generation.
This might seem surprising—after all, the drivers of volatility are the same across markets. On closer inspection, however, it becomes clear that a confluence of factors is working to mitigate price volatility. These factors include interconnections with neighboring markets (with lower levels of VRE or diverse forms of generation); some form of capacity markets or payments; high levels of pumped hydro capacity; and stringent price caps and floors. How price volatility plays out in different markets depends on the presence of these factors.
Yet as markets and policymakers introduce greater renewable capacity to achieve climate change goals, forcing out conventional generators, we also expect far greater volatility to assert itself in these markets. Unless designers and operators in all markets take steps to mitigate volatility, energy users could be faced with an environment of feast or famine: electricity will be free—except when it’s really needed. There will be a greater risk of outlier events with very high electricity prices, and electricity systems will be more exposed to natural gas costs, as seen in several markets globally in 2021.
If, as we expect, more-volatile prices are experienced more broadly, it will present opportunities for industrial consumers to gain an advantage by flexing their demand while increasing “insurance” costs for consumers that cannot (or will not) take this route.
Governments and market designers that don’t manage price volatility, or that alternatively impose significant costs in doing so, can damage local industrial competitiveness and development. There are multiple levers available to limit the impact of greater volatility. But many come with hidden costs—so they need to act carefully. While grid developments and the introduction of liberalized markets have separated supply and demand over the past decades, we believe governments should: (1) once again consider supply and demand together (not necessarily in terms of location, but in terms of the timing of generation and consumption) by creating combined energy-industrial solutions and (2) ensure that barriers to demand-side flexibility are removed.
There are several factors at play that are increasing price volatility in some electricity markets.
Price volatility is both a normal and desirable feature of today’s liberalized markets. Price fluctuations provide important signals for the development and dispatch of flexible power plants and storage facilities. Hedging markets, with varying levels of liquidity, allow participants to insure (at a cost) against the risk, if they choose. And by agreeing to pay a fixed tariff to their energy retailer, many industrial—and most commercial and residential—users can shield themselves from the day-to-day volatility.
However, electricity markets worldwide are poised for rapid change as governments aim to achieve net-zero emissions by 2050. According to the International Energy Agency’s net-zero pathway, VRE will need to make up close to 70% of the global generation mix by midcentury, compared with about 9% in 2020, even as the total amount of electricity generation increases more than two and a half times.
As volatility surges in markets with high penetration of variable renewable generation, questions are being raised about the impact of variable renewables on electricity prices. One of the promises held out is that “electricity will be free,” because it costs nothing for the sun to shine or the wind to blow. But based on the evidence from these markets, one needs to add “except when you really need it”—and then it will be expensive relative to the average price.

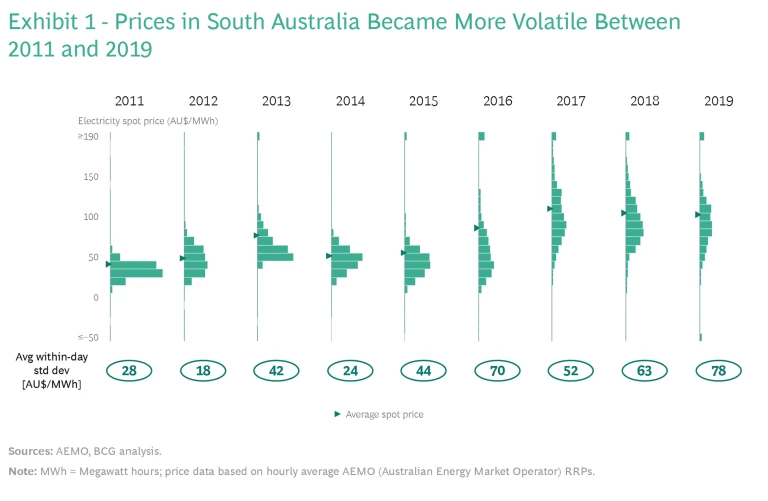

In South Australia, for example, the share of solar and wind in the generation mix rose from around 24% to 50% between 2011 and 2019. Over the same period, average yearly within-day price volatility increased by around 180%. (See Exhibit 1).
This increase was driven roughly equally by a combination of more extreme periods when prices were either zero or negative (“electricity is free”) or more than twice the average (“except when you really need it”) and by more generalized day-to-day volatility owing to the varying availability of solar and wind throughout the day and across seasons (impacting the residual demand, or residual load, which is the demand met by dispatchable generators—that can be turned on and off according to demand—after subtracting variable renewable generation). This increase in volatility has posed challenges for inflexible dispatchable generators, which have been forced to accept low or negative prices for their electricity, and inflexible consumers with fixed tariffs that have been forced to purchase electricity at very high prices or pay a higher average price to their retailer to accommodate the risk of volatility. (For insights into the mechanism whereby VRE impacts price volatility and a case study of the South Australia market, see the sidebar “Understanding the Drivers of Volatility in Electricity Prices.”)

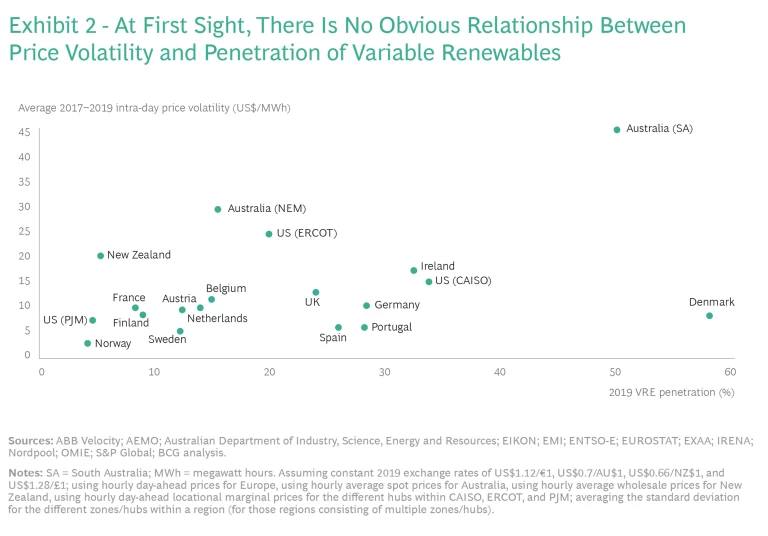

But while a high penetration of variable renewables leads to significant price volatility in some markets, that’s not the case for all markets. We analyzed 19 liberalized electricity markets from 2011 to 2019, excluding 2020 and 2021 due to the anomalies resulting from the COVID-19 pandemic and subsequent rebound, though the extent of those fluctuations is in itself instructive of volatility in energy markets. (See the sidebar “Scope of Analysis” for details). We found that the relationship between variable renewables penetration and price volatility is not straightforward. Some markets, such as Denmark, have very high levels of VRE and enjoy relatively stable prices; others, such as Texas, have lower levels of variable renewables but higher price volatility. (See Exhibit 2). Why is that?
Exhibit 2 includes several markets that already have meaningful levels of VRE yet have avoided the worst price volatility. These markets possess distinctive volatility-reducing features that work by either flattening the merit order (supply curve) or narrowing the variability in residual demand (electricity demand less VRE production). These features include:

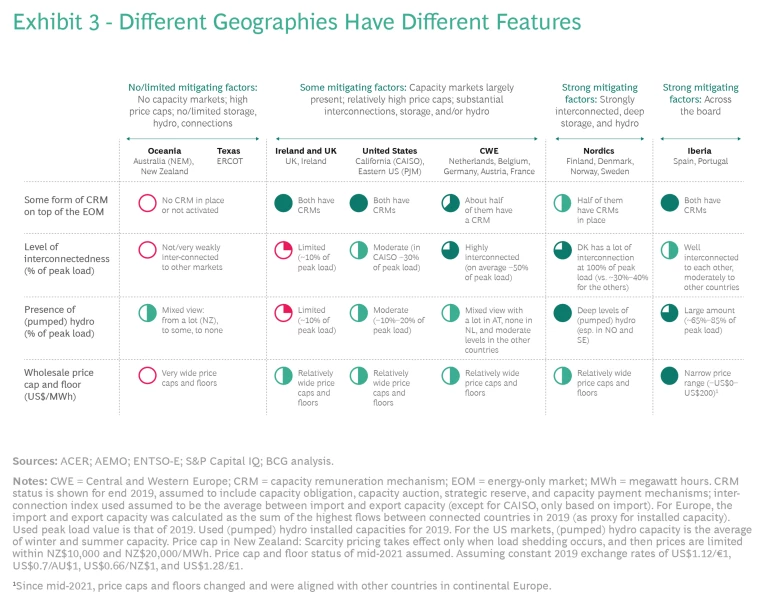

We clustered the markets based on the extent to which these features are present and found that three groups emerged. (See Exhibit 3.)
The first group consists of electricity markets that (during the time frame of our analysis) didn’t yet have capacity markets, did have very high price caps in line with what power system economists call the “value of lost load” (typically $10,000 to $20,000 per MWh), and had limited interconnections with neighboring markets and/or limited storage and hydro generation relative to the size of the market. Examples include Texas (Electric Reliability Council of Texas—ERCOT), Australia’s East Coast (National Electricity Market—NEM), and New Zealand.
The second set of markets is characterized by substantial interconnections with neighboring markets, lower regulatory price caps (typically still a few thousand US dollars per MWh), and generally some form of capacity market in addition to the energy-only market. They include most countries in Central and Western Europe; Ireland and the UK; California (California Independent System Operator—CAISO), and the eastern US (PJM Interconnection).
In the third group, some or all of the features that have a mitigating effect on price volatility are strongly present. For example, Spain and Portugal have relatively high levels of hydro and pumped hydro plants; Spain provides capacity payments that have supported an excess of mid-merit plants; and both markets had stringent price caps and floors of €180/MWh and €0/MWh, respectively (although, since mid-2021, both markets have aligned their price caps and floors with other countries in continental Europe). Another example is the Scandinavian countries, which are strongly interconnected and have significant levels of dispatchable hydro dams and pumped hydro storage.

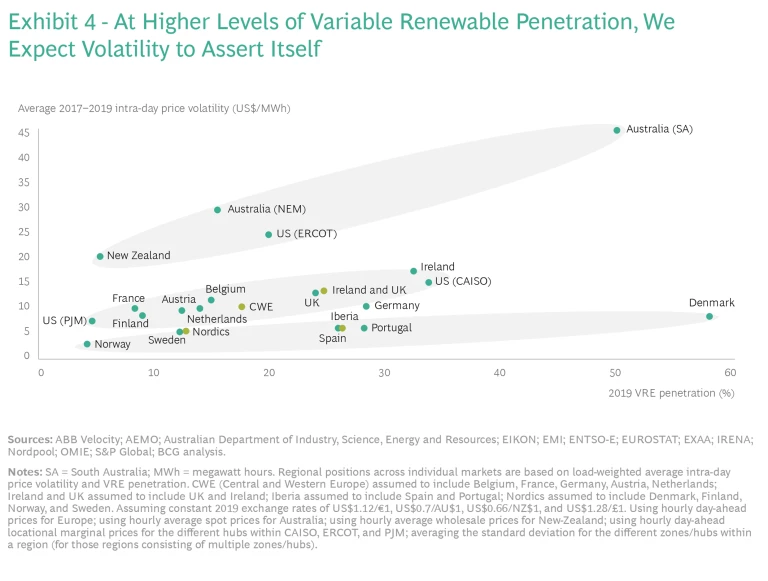

Within each of these three groups, there is a clear relationship between greater levels of VRE and higher price volatility. (See Exhibit 4.) The first group of markets behaves in a similar way to the South Australian example (described in the sidebar “Understanding the Drivers of Volatility in Electricity Prices”), with very high price volatility in all of them. But even in this group, volatility increases as the penetration of variable renewables rises. The pattern is repeated in the other groups, which share a similar degree of volatility-reducing features.
While most markets in the latter two groups have escaped the highest levels of price volatility (during our time frame, excluding the events occurring in the second half of 2021) despite integrating higher levels of VRE sources, we expect volatility to increase as VRE generation grows and more conventional plants exit.
Based on our findings, it may be tempting for countries with strong connections to neighboring markets to conclude that they are immune to the price volatility caused by high VRE generation. However, in a future where most, if not all, neighboring countries have much deeper penetration of renewable energy resources, with similar (even if not fully correlated) generating patterns, they will not be able to rely on each other to balance out variability in their own electricity systems. We expect even countries in Central and Western Europe, which benefit today from strong interconnections, to experience higher price volatility.
In these markets too, governments and electricity system designers cannot afford to be complacent. They must also plan ahead to avoid the worst effects of price volatility. In addition, governments and designers will need to be aware that increased penetration of VRE will leave their national power systems facing a greater impact from rises in natural gas prices as well as electricity price volatility. (See the sidebar “An Important Side-Effect: Exposure to Natural Gas Prices.”)
Normal price volatility is not necessarily a phenomenon to be avoided. Extreme price volatility, however, can increase the cost of managing risk for energy customers and generators.
We’ve identified five ways that stakeholders can manage the impact of VRE generation on price volatility. Not all approaches are equal. Some incur hidden costs, while others are effective only temporarily and need to be supported by more permanent measures.
Consume renewable energy when it is produced and produce when it is consumed. Price volatility creates an incentive for consumers to shift their demand to periods when there is sufficient generation from solar and wind. This will require companies to invest in assets and alter their operations so they are more flexible in how they consume electricity. The payoff: a large share of electricity demand could be met at a relatively low cost.
At the same time, it is important that the mix of VRE generation is optimized, especially when subsidized by governments. Rather than just encouraging renewables that provide the lowest levelized cost of electricity, governments and electricity market designers should ensure a mix of renewable technologies, designs, and locations that correlate well with existing and planned demand. On the flip side, there is also an opportunity to encourage new industry with flexible demand that is well-matched to locations with low-cost VRE resources.
One potential option for markets with extremely low-cost VRE will be to overbuild the renewable generation needed to supply current demand and to introduce new, highly flexible forms of demand—most notably green hydrogen production—that can soak up excess power generation.
Reduce residual demand ahead of closing dispatchable generating capacity. Curbing residual demand—either through lower consumption or by introducing excess renewables—prior to the closure of fossil-fueled plants tends to keep the market oversupplied with energy and thus reduces both electricity prices and volatility.
The use of energy efficiency measures to lower consumption is welcome. But deliberate demand destruction (for example, allowing an aluminum smelter to close) comes with industrial and social costs. And while introducing renewable generation ahead of the closure of dispatchable generators can curb prices and volatility, this is likely to require government incentives or subsidies.
Both solutions are only temporary, however, until the weakened economics of dispatchable generators force the closure of these plants. In addition, both mechanisms can be costly. In some cases, the early introduction of renewables has resulted in the seemingly perverse situation where renewables are subsidized to enter the market and dispatchable generation is simultaneously subsidized to remain open.
Flatten the merit-order curve. Ensuring that there is sufficient mid-merit and peaking power capacity remaining in the market, and that their fuel costs are low enough, results in reduced price peaks. One way of achieving this is to make capacity payments to operators of dispatchable plants to support their income despite lower running hours. This approach has enabled Spain to maintain combined cycle gas turbine (CCGT) plants in its generation mix, for example.
Maintaining capacity is not enough on its own. Access to affordable fuel is also necessary. As recent spikes in European gas prices have shown, high fuel costs for marginal suppliers can translate into high and volatile electricity prices, even when sufficient mid-merit capacity exists.
Maximize interconnections with neighboring markets. Interconnections with markets that are larger or have a different mix of energy resources can help reduce price volatility. As we have seen, Germany is a prime example: its connection to, for example, France’s nuclear resources, Denmark’s abundant wind resources, Austria’s hydro power, and Poland’s coal-fired generation results in more stable prices despite its high proportion of variable renewables. Maximizing interconnections remains a viable means of tackling volatility. But it comes with significant costs and is of diminishing benefit as more interconnection is added, unless the connections release diverse sources of generation.
Integrate electricity storage. Storage in electricity markets serves to shave peaks and flatten troughs. While they remain relatively expensive, batteries could serve to reduce within-day price volatility. Today, batteries are not supported by revenues from daily arbitrage alone but are funded primarily though frequency control services. The downside of the latter is that the demand for these types of ancillary services is limited.
Managing weekly, monthly, and seasonal volatility requires solutions that can store energy for longer periods; for example, large pumped hydro reservoirs and hydrogen-based storage. Except in the best locations, these options remain expensive and may face geographical limitations. Therefore, they need a high residual level of market volatility to justify investments.
As the shift to variable renewable energy continues, we see two moves that governments and market players can make as they seek to control price volatility.
Before today’s extensive power grids were created, it was common for the supply and consumption of electricity to be decided together. To minimize costs, large customers located their facilities close to a source of reliable, cheap electricity. As grids became more widespread, this became less necessary. In the future, however, we believe that governments should once again consider both sides of the equation. One way to do this is by developing energy-industrial solutions that take into account the nature of energy resources and demand on a regional basis. For example, cheap but variable energy resources, such as low-cost solar, could favor flexible industries like green hydrogen production, whereas higher-cost but more dependable resources might favor less-flexible industries.
Electricity market designers are increasingly looking toward capacity markets as an effective means of ensuring reliability of supply and managing price peaks. We believe designers should approach them with caution to avoid crowding out market participants such as demand-side flexibility providers, thereby increasing overall system costs.
At their best, capacity markets reward (firm) capacities for being available at critical moments. At their worst, they maintain costly excess capacity by supporting generators that are not fit for purpose and lack adequate flexibility. And depending on how the charges that fund capacity payments are levied on market participants, they can reinforce volatility (for example, through critical peak pricing) or dampen signals for greater demand flexibility (through smeared costs).
To curb price volatility, market designers can also be tempted to impose more stringent price caps and floors. But these are temporary solutions at best. They counteract the market’s ability to signal situations of scarcity and surplus, thereby removing necessary incentives for investment and dispatch.
Consumers and businesses in some energy markets have been lucky. They’ve avoided the significant price volatility that generally arises from high variable renewable generation, thanks to factors such as strong interconnections with neighboring countries and abundant storage. But governments and system designers cannot afford to be complacent. As conditions change and countries ramp up renewables generation to meet climate goals, keeping a lid on electricity price volatility will become increasingly difficult. Governments will need to consider new steps to ensure that their consumers’ interests are protected and that their industries remain competitive.
The authors thank BCG’s Thomas Baker, Antti Belt, Eric Boudier, Christophe Brognaux, François Candelon, Sergio Figuerola, Ignacio Hafner, and Lars Holm, with whom they have exchanged ideas during the preparation of this publication. These rich and engaged discussions have allowed the authors to push their thinking further. The authors also thank Charlotte De Causmaecker, Pieter Ediers, Sander Claeys, and Konstantinos Spiliotis for their contributions. They are also grateful to Matthew Fletcher for writing support and Monica Jainschigg and Kim Friedman for editorial and design support.
